INTRANAV Industrial Starter Kit
SMART Factory & Warehouse
Full functionality with the INTRANAV Starter Kit,
for a professional indoor track & trace
Our INTRANAV Industrial Starter Kit is designed for the generation of indoor location data for intralogistic transport vehicles (forklifts, route trains) and autonomous transport vehicles (AGVs) as well as containers, boxes, tools or people (Health Safety Environment). Test INTRANAV in the warehouse or in production for precise Real-Time Location Tracking & Sensor Data Monitoring with up to ±10 cm accuracy. Then scale the INTRANAV Digital Twin Suite further according to devices as desired.
[ Download INTRANAV Industrial Starter Kit Brochure ]
[ Industrial Starter Kit ]
INTRANAV.IO & INTRALYTICS Software Package
The digital industrial IoT platform INTRANAV.IO is a key component for the successful implementation of tracking and sensor data of any wireless technology, currently we use the most accurate technology for indoor tracking applications: UWB (Ultra-Wideband). Digitize and automate your processes on the store floor or production line with a variety of integrated functional modules. INTRANAV.IO is technology independent and can be operated with various indoor & outdoor RTLS SMART sensors and coupled to target systems by means of standardized interfaces.
Included in the INTRANAV.IO package:
- INTRANAV.IO with 3 months trial license
- INTRANAV Toolkit
- REST API / MQTT
- Online documentation
Included in the INTRALYTICS package:
- TRAIL Indoor Report
- HEATMAP Report
- ZONE (Retention Time) Report
Use the above mentioned INTRALYTICS Dashboards or the OPEN Dashboard Integration for 3rd party data visualization and flows.

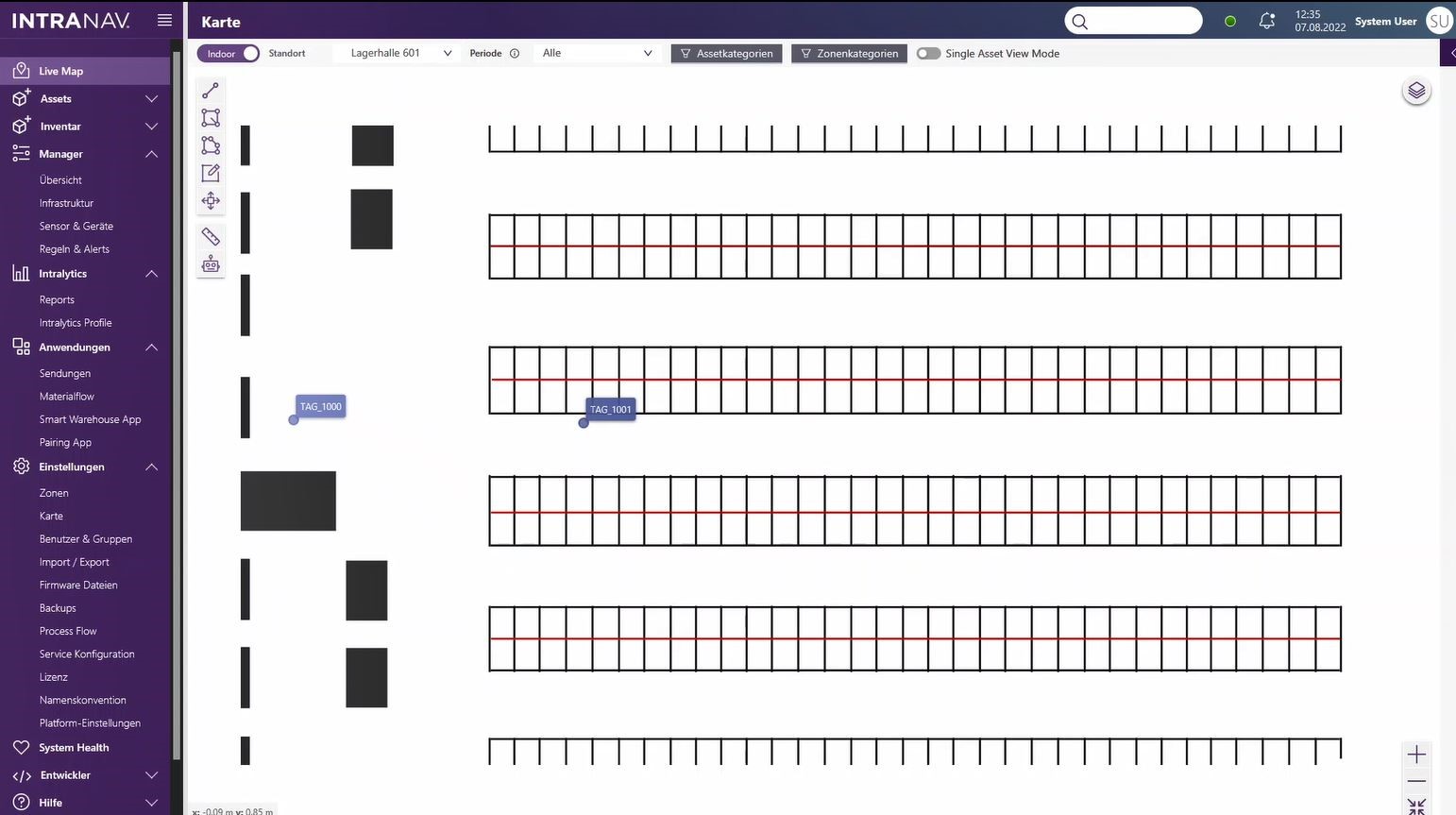

INTRANAV.IO – Indoor Live Map
The INTRANAV.IO platform visualizes all generated tracking data in real-time on the Indoor Live Map of your plant as a Digital Twin. Gain process transparency of your production order, logistics and material flows. Our RTLS provides accurate (±10cm) position and sensor data of your industrial trucks, containers, bins and for security purposes, also of persons.

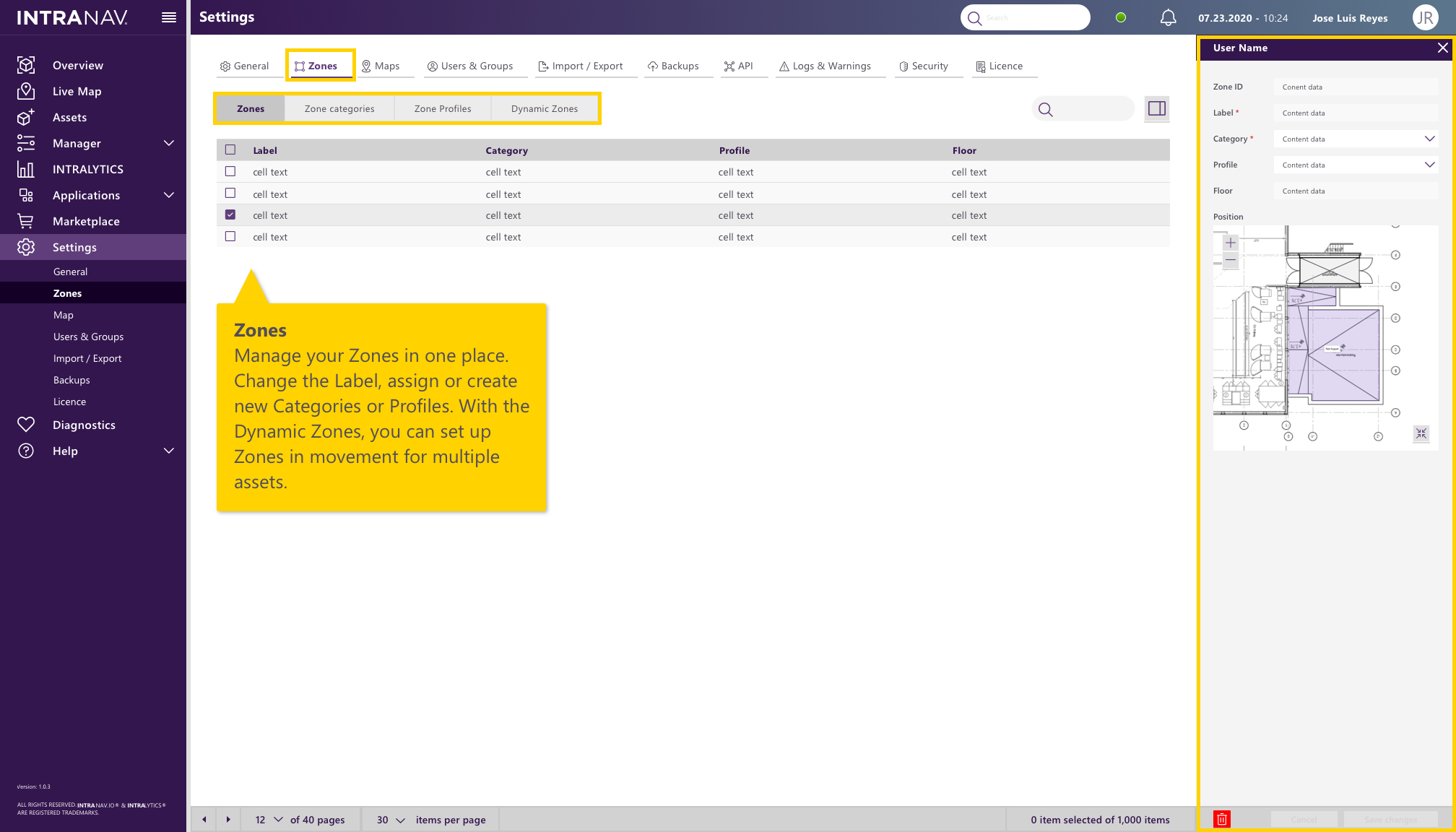

INTRANAV.IO – Zones
Zones (geofences or virtual zones) trigger automated bookings and can trigger any defined processes by connecting to ERP/EWM systems. Furthermore, you will receive fully automated feedback on logistics steps. Larger objects (pallets, boxes etc.) can be booked scannerless (Auto-ID), which also enables the implementation of paperless logistics (Logistics 4.0). Furthermore, any alerts and warnings can be issued for predefined if / then scenarios. Get an overview of your zones. Edit the respective zone category, create different zone profiles, and manage dynamic geofences (zones that surround a vehicle, for example).

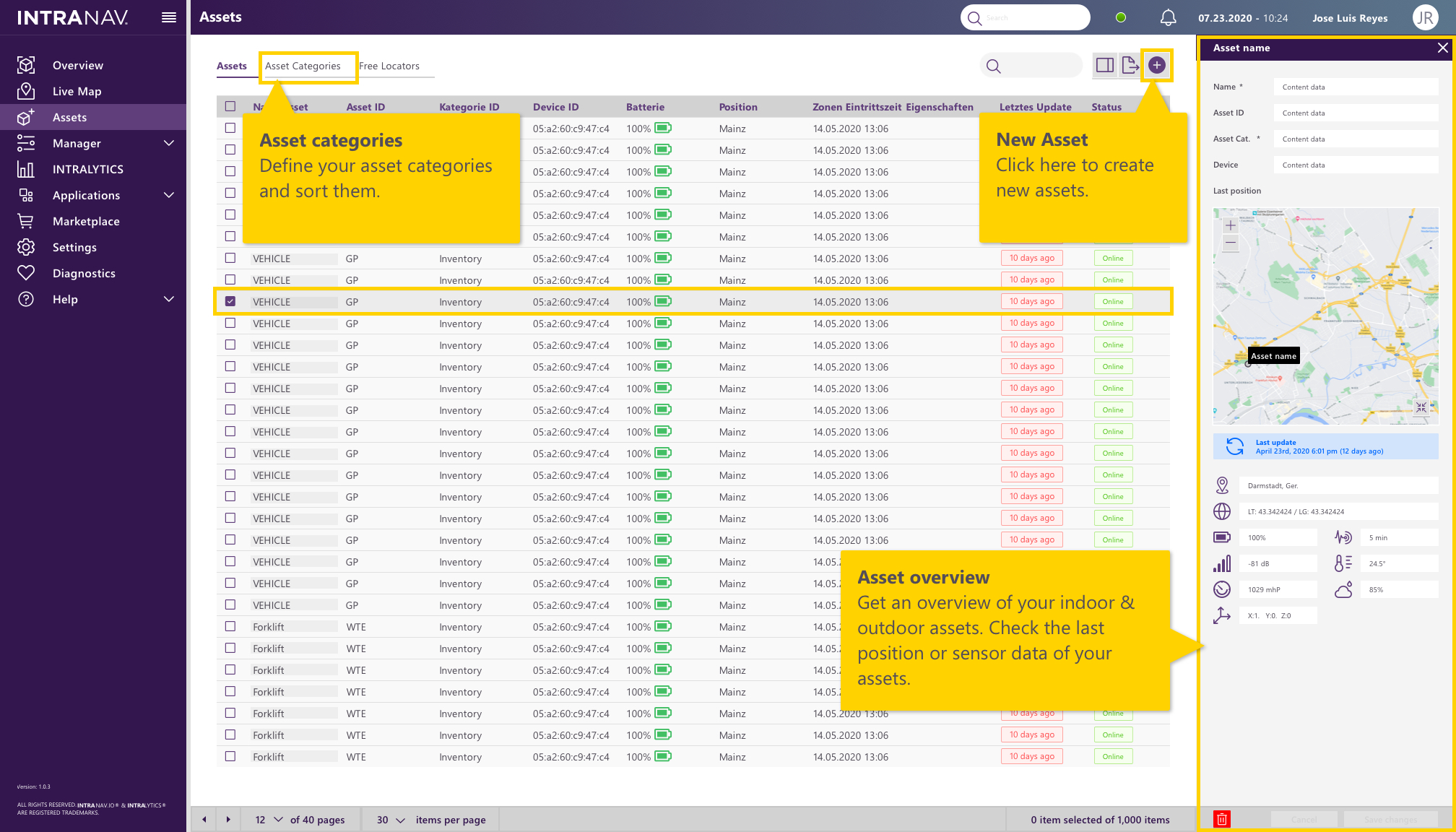

INTRANAV.IO – Asset Manager & Sensor Data Monitoring

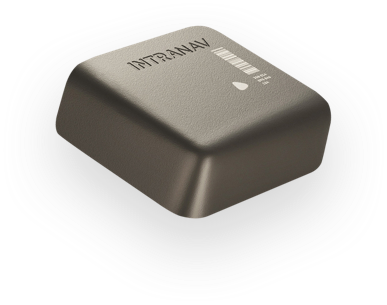

Once a TAG is linked to a vehicle or object, we refer to it as an “asset”. Get an overview of your assets, manage their settings, check the last position. With integrated sensors in our INTRANAV.RTLS TAG you can monitor the status (temperature, humidity, acceleration/shock (IMU)) your assets or vehicles. Receive alerts via SMS & email in the event of deviations from specified limits or process interruptions, thus also ensuring compliance with transport and storage guidelines.

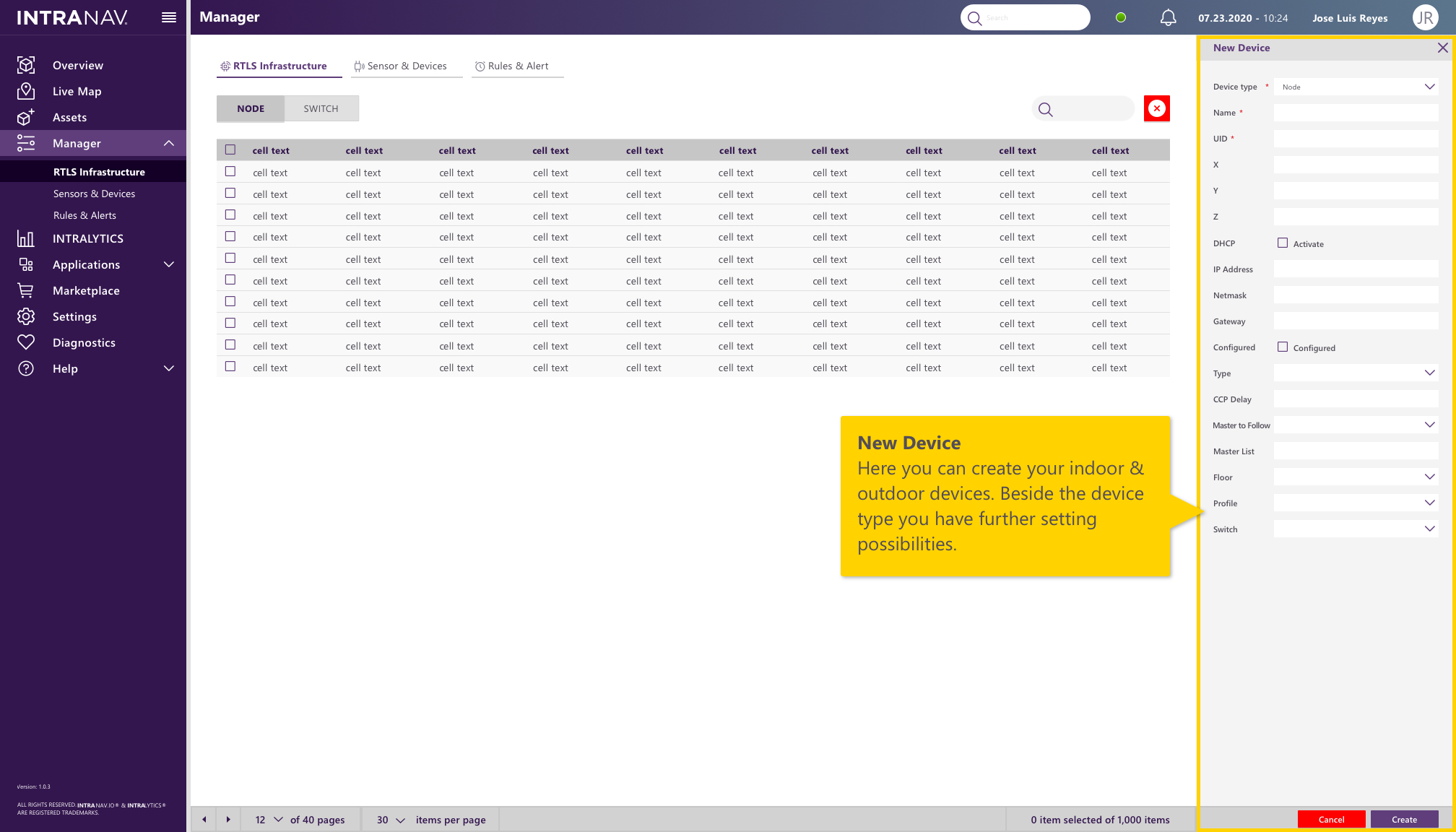

INTRANAV.IO – Manager
With the INTRANAV.IO Manager you can organize your RTLS infrastructure. Create and configure NODEs /Switches and Indoor & Outdoor TAGs. In “Rules & Alerts” you define the processes for which you want to be notified by email or SMS.
INTRALYTICS – TRAIL Indoor Report
With the TRAIL Indoor Report (Spaghetti Diagram), you can analyze the period of assets and vehicles in motion within your plant in real time or in any defined period. Analyze whether your fleet of vehicles is following predefined and efficient routes. This analysis is essential for the optimization of your production layout in order to uncover ineffective times of your work processes.
INTRALYTICS – HEATMAP Report
With HEATMAPs you visualize the temporal frequency of your transport and material flows. Identify highly frequented interfaces and duration of stay of your transport vehicles and materials, as well as where traffic jams, waiting and control times occur particularly frequently.
INTRALYTICS – ZONE Report
With ZONE Reports you can analyze over what period of time a zone of your store floor was occupied. For example, you can see how long your forklift trucks were in the battery zone and check whether prescribed zones were actually used and how long they were in them.
CSV Data Export
Export your data via CSV, for manual transfer to other systems and databases.
INTRANAV Industrial Tracking Benefits
- 100% Digital Twin & Digital Shadow: The basis for process digitization as well as automation & optimization of industrial workflows
- Flexible and precise tracking (±10cm) of vehicles, goods, tools, load carriers, and much more
- Control security during the loading of pallets, boxes & containers
- Automated registration of delays in the process flow
- Industry 4.0 Solutions: Auto-ID, eKanban, Sensor Monitoring, Track & Trace, Yard Management, Waveless Picking, Indoor Navigation
- INTRALYTICS real-time data analysis for dashboards and reports
- Event engine for geo-fences and virtual zones
- Navigation and route optimization of means of transport
- Reduction of running operational costs through AUTO-ID
- Full connectivity and open interfaces for ERP/EWM/transport control systems, OPC-UA, REST-API, RPC, IP-Symcon
- Available for on-premises (local) or for the cloud
INTRANAV Plug & Play RTLS Installation
It’s that easy!
Activate the INTRANAV Plug & Play Solution
Attach INTRANAV.RTLS GPS TAG (tracker) to vehicle or object
EReal-time tracking & sensor data monitoring of your load carriers via the INTRANAV.IO platform
Scale INTRANAV Digital Twin Suite as desired per device
